The Single Fastener Analysis Tool (SFAT) is a Smart Engineering Simulation App providing accurate computation of the joint stiffness, plate stresses, and fastener loads for single or double shear bolted lap joints connected by a single 3D fastener.
Single Fastener Analysis Tool
Through a simple and intuitive interface, the user can provide engineering input data from which SFAT automatically builds, solves, and post-processes a fully 3D StressCheck finite element mesh of the desired bolted lap joint model using its robust multi-body contact algorithm.
Key Features and Advantages
- Simulate 3D-contact with high quality results without having to build a FE mesh.
- Solution time is reduced from hours to minutes.

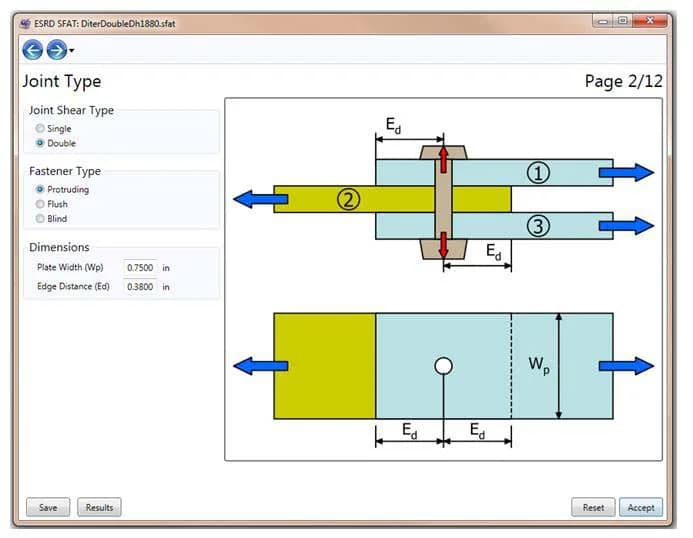

- Simplified user interface provides input of the appropriate fastener data in pre-defined templates with step by step validated feedback.

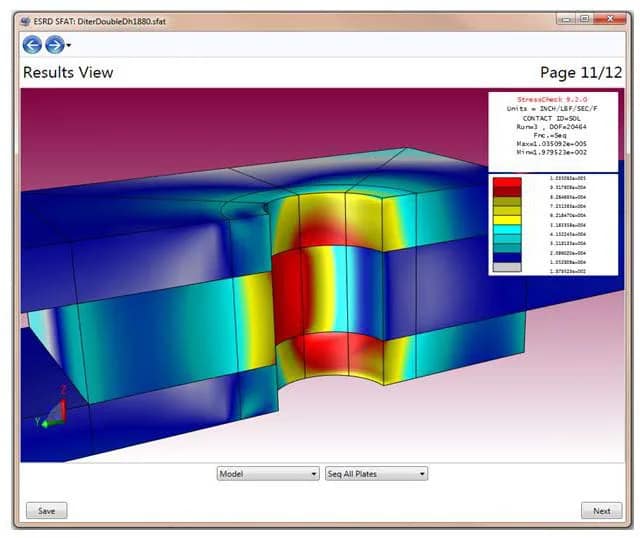

- Easy to Learn and Easy to Use. Built-in Results Viewer provides dynamic viewing of the FE mesh and stress fringe contours.
- Supports single and double shear joints with washers, bushings, shims, protruding head or countersink fasteners, metallic or laminate composite plates.
- Solutions obtained with StressCheck, verified by p-extension.
- Modeling approach validated with experimental results
- Supports US and SI units.
