Helpful Hints and Tips: Case Study on the Influence of Element Mapping and p-Discretization

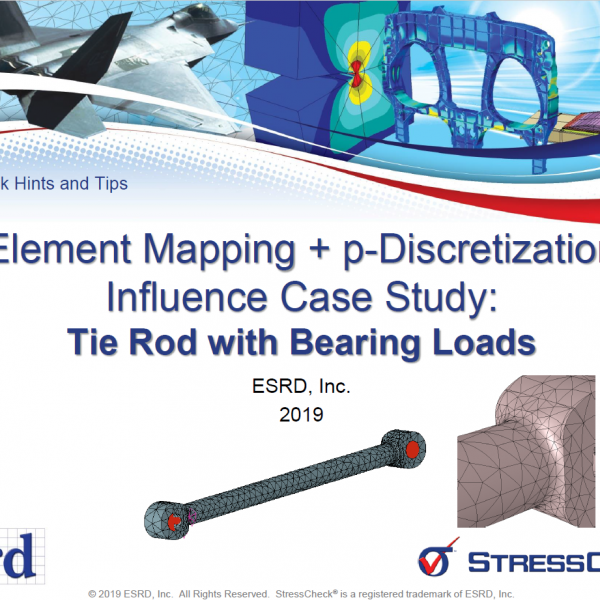

In this case study, a 3D tie rod under bearing loads was analyzed (CAD courtesy of Digital Engineering). The influences of 1) converting element mapping from isoparametric/quadratic to geometric and/or 2) assigning p-discretization on the peak stress and solver time was documented. Element mapping was considered both on all elements and a subset in the region of interest, and p-discretization was considered on elements outside the region of interest to reduce solver time.
