StressCheck Tutorial: Incorporating Contact Pressure Bleed in Resultant Extractions

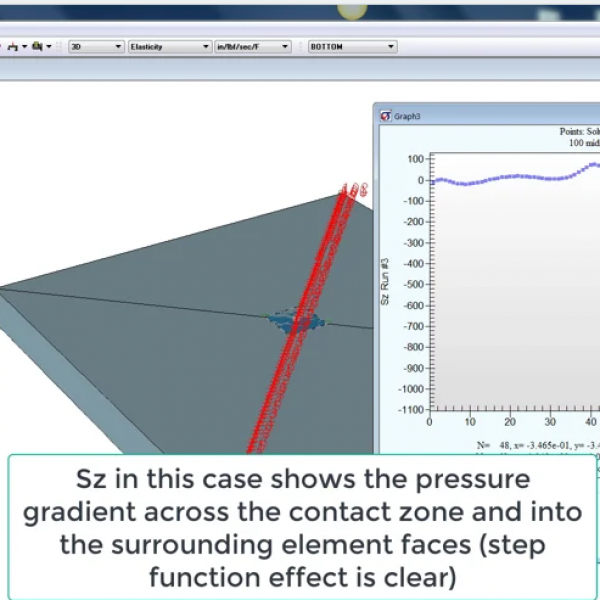

Abstract: The term “bleeding” means that the tractions associated with the contact pressures may not be zero out of the contact region on their way to zero traction. This can affect the calculation of stress resultants, and therefore the load transfer feedback. Selection only the element faces inside the contact zone, or the contact zone itself, may not be sufficient to represent the stress resultant associated with the contact pressure.
