Utilities

StressCheck®‘s add-on Utilities include the latest CAD translators and advanced automatic meshing tools, in addition to the native Parasolid CAD modeler and automatic meshing tools available in StressCheck® Core, to save you time and efforts in the FEA modeling process.

Fully functional CAD translators make the transition from your CAD tool to StressCheck® seamless, while advanced automeshing functions efficiently refine at local details.

  • MeshSim Advanced
  • CATIA Translators
  • IGES Translator
  • Creo (Pro/E) Translator
  • STEP Translator

MeshSim Advanced

MeshSim Advanced Module

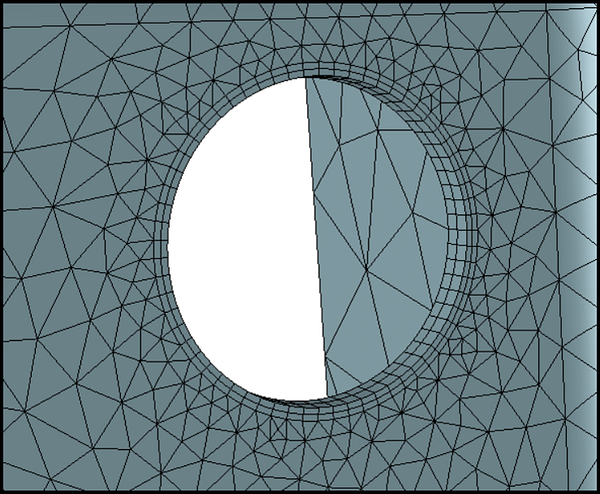

The MeshSim Advanced automeshing utility is a powerful addition to 3D StressCheck® automeshing. This module enables boundary layer meshing for adding additional layers of elements around cracks, holes and fillets, as well as extrusion meshing for constant-thickness parts. Typically paired with the Fracture Mechanics module.

CATIA Translators

CATIA Translators

StressCheck® supports the latest CATIA v4, v5 and v6 3D Interop library formats.

CATIA v4
  • 4.1.9-4.2.4
  • .model, .exp, .session
CATIA v5
  • R8-R2019 (V5 R8- V5-6 R2019)
  • .CATPart, .CATProduct, .CGR
CATIA v6
  • Exported from up to V6 R2019x
  • .CATPart, .CATProduct, .CGR

IGES Translator

IGES Translator

StressCheck® supports the latest IGES 3D Interop library formats.

  • Up to 5.3
  • .igs, .iges

Creo (Pro/E) Translator

Creo (Pro/E) Translator

StressCheck® supports the latest Creo (Pro/E) 3D Interop Libraries.  Learn more about the versions and formats supported.

  • 16-Creo 5.0
  • .prt, .prt.*, .asm, .asm.*

STEP Translator

STEP Translator

StressCheck® supports the latest STEP 3D Interop Libraries.  Learn more about the versions and formats supported.

  • AP203, AP214, AP242
  • .stp, .step
