Helpful Hints and Tips: Elliptical Crack Automeshing Guidelines

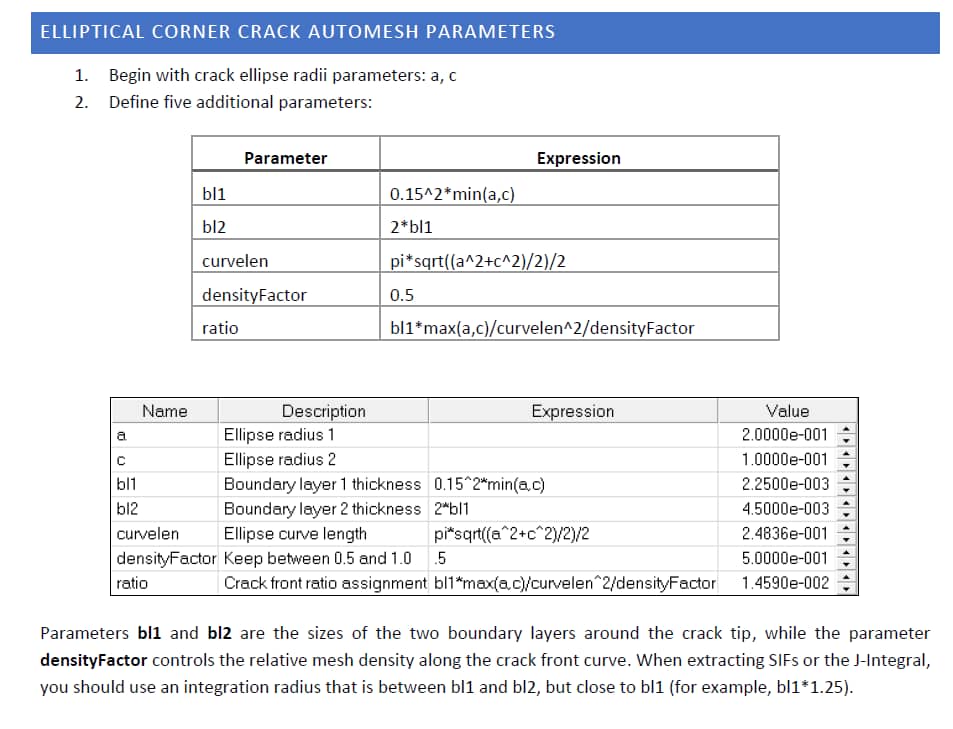

This document contains practical guidelines for the automeshing of elliptical or semi-elliptical cracks in StressCheck, balancing best practices with mesh density and solve time. These guidelines are most applicable when the crack front curve object is of type ellipse (i.e. “ELL”). For a curve object type of spline (i.e. “BSP”) or other, a similar process can be followed to generate reasonable automeshes for the computation of fracture mechanics parameters.
