StressCheck Demo: Bracket Modal Analysis

Home ShopModal & Buckling SolverStressCheck Demo: Bracket Modal Analysis
StressCheck Demo: Bracket Modal Analysis

StressCheck Demo: Bracket Modal Analysis

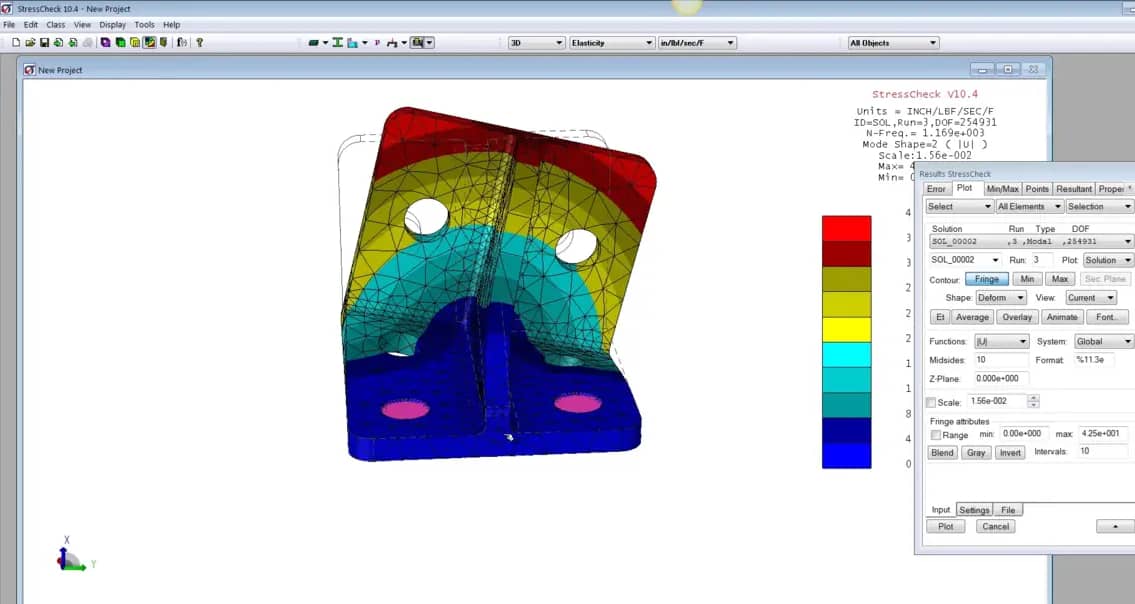

Abstract: A Bracket Modal Analysis Demo video is presented for a solid bracket geometry with two fixed holes. The goal of the analysis is to compute the first two free vibration modes. The problem description is from Tony Abbey’s Digital Engineering Simulation Overview from August 2018, in which he solved the same problem using Autodesk Nastran In-CAD.

  • Scroll to View This Resource (Login May Be Required)

Hit the play button to view this video. You may maximize the video to fit your screen.

Related Content:

  • StressCheck Demo: Shear Panel Buckling Load Factor Analysis
  • StressCheck Demo: Aircraft Keel Beam Stress Analysis
  • StressCheck Demo: 2D Fastened Joint Analysis
  • StressCheck Demo: 3D Stress Concentration Factor Analysis for a V-Notch Specimen
  • StressCheck Demo: 3D Geometric Nonlinear Analysis

Related products

Toolkit FEA Overview Presentation Read more View Details

Toolkit FEA Overview Presentation
Simulation Technology, StressCheck Core, StressCheck Powered Apps, StressCheck Professional, StressCheck Toolbox
Buckling Analysis Product Brief Read more View Details

Buckling Analysis Product Brief
Modal & Buckling Solver, Simulation Technology, StressCheck Core, StressCheck Professional
Composites Analysis Product Brief Read more View Details

Composites Analysis Product Brief
Composites Module, StressCheck Professional
Fracture Mechanics Overview Presentation Read more View Details

Fracture Mechanics Overview Presentation
Fracture Mechanics Module, Linear Elasticity Solver, MeshSim Advanced Module, Simulation Technology, StressCheck Core, StressCheck Professional
Categories: Modal & Buckling Solver, StressCheck Core, StressCheck Professional. Tags: Boundary Conditions, Convergence Extraction, Meshing, Modal & Buckling, Plot Extraction, Results, StressCheck GUI.
