StressCheck Demo: Part-Thru Crack SIFs for Stiffened Lug

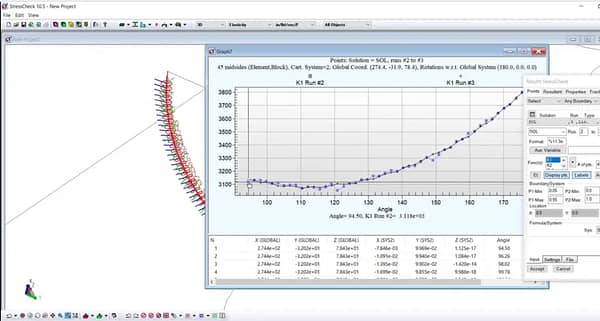

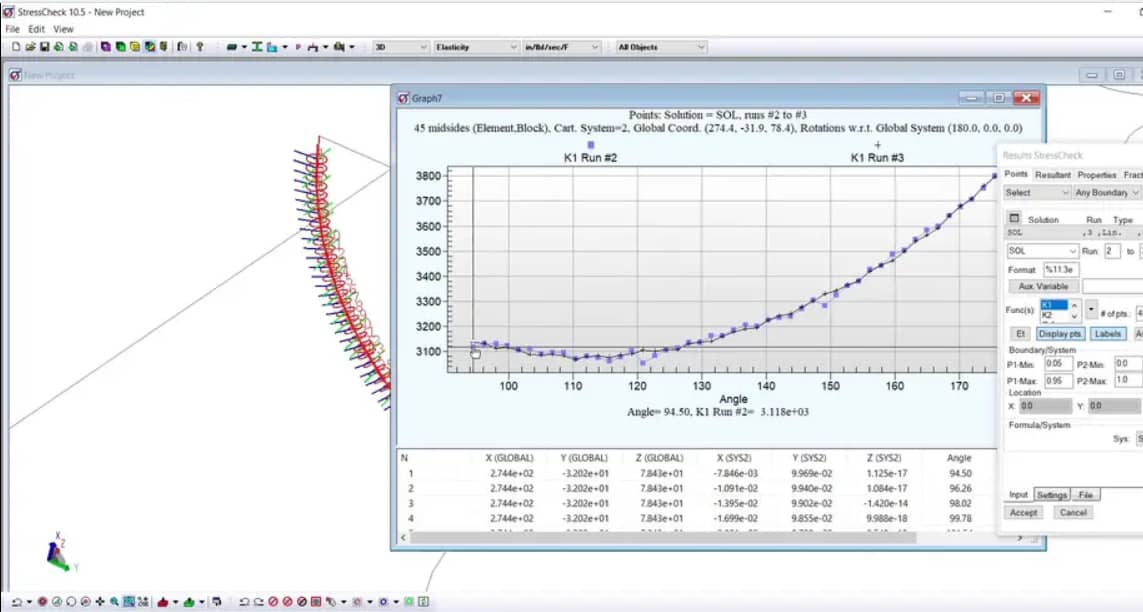

Abstract: A 3D Fracture Mechanics Analysis Demo video is presented for an elliptical part-thru crack in a stiffened lug. The goal is to compute converged SIF distributions along the elliptical crack front.
Related products
Categories: Fracture Mechanics Module, Linear Elasticity Solver, MeshSim Advanced Module, StressCheck Core, StressCheck Professional. Tags: Damage Tolerance, Fracture Extraction, Fracture Mechanics, Linear Analysis, Meshing, Points Extraction, Results, Solid Modeling.
Featured Version(s): StressCheck v10.x
