StressCheck Tutorial: Parametric Solid Modeling of a 3D Bracket

Home ShopStressCheck CoreStressCheck Tutorial: Parametric Solid Modeling of a 3D Bracket
StressCheck Tutorial: Parametric Solid Modeling of a 3D Bracket

StressCheck Tutorial: Parametric Solid Modeling of a 3D Bracket

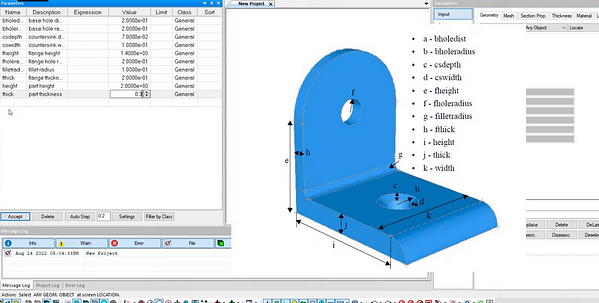

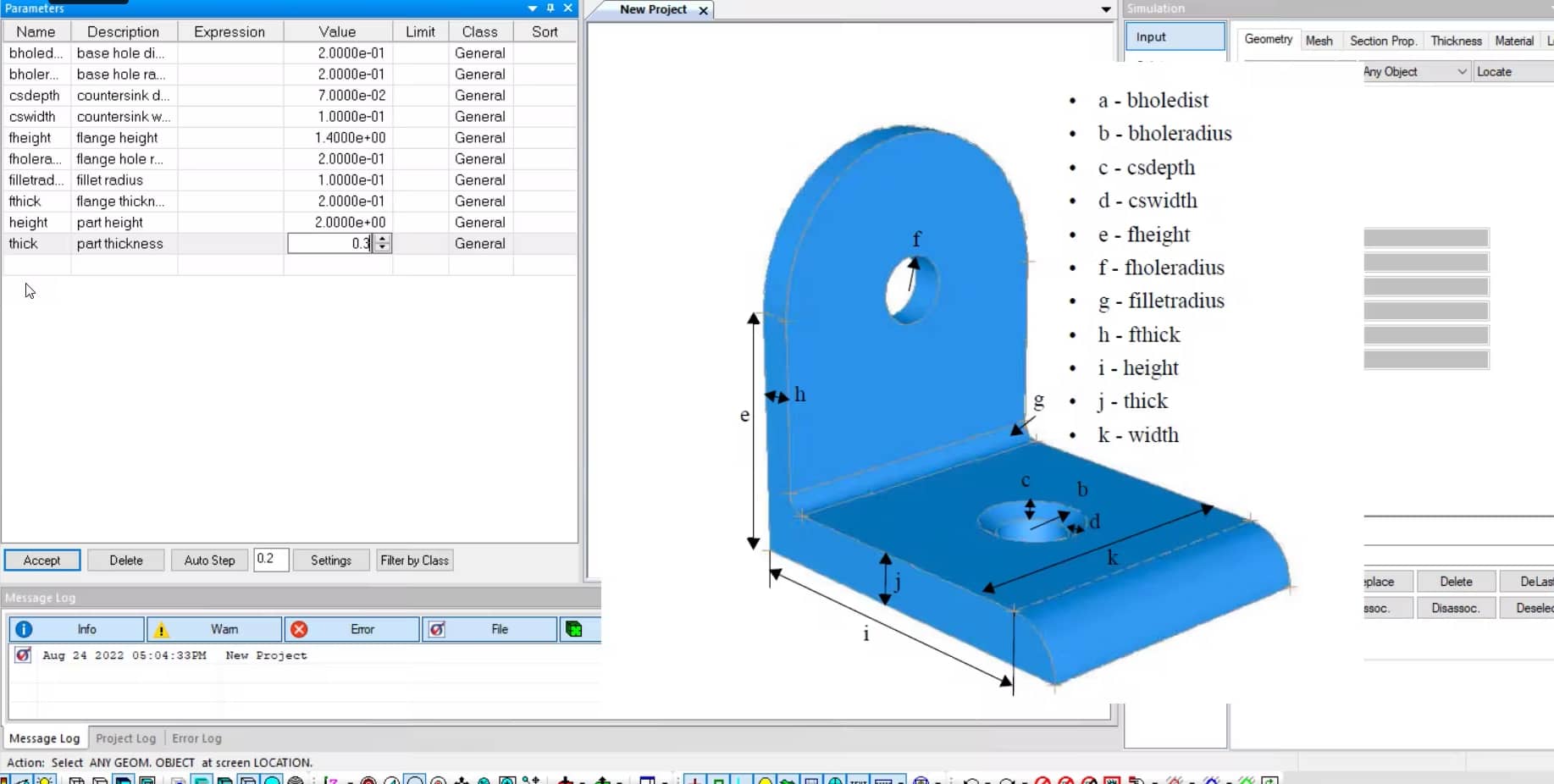

Abstract: parametric solid modeling steps for the construction of a 3D bracket geometry are demonstrated. These operations include various Boolean, blend, clip and chamfer operations.

  • Scroll to View This Resource (Login May Be Required)

Hit the play button to view this video. You may maximize the video to fit your screen.

Related Content:

  • StressCheck Demo: 3D Parametric Solid Modeling
  • StressCheck Tutorial: Solid Modeling of Threaded Holes
  • StressCheck Tutorial: Defining Solution and Extraction Settings for Parametric Models
  • StressCheck Tutorial: Parametric TLAP Case ID Scaling Overview
  • StressCheck Tutorial: Parametric TLAP Scaling for Nonlinear Events
