StressCheck Tutorial: Check Solution Degrees of Freedom (DOF)

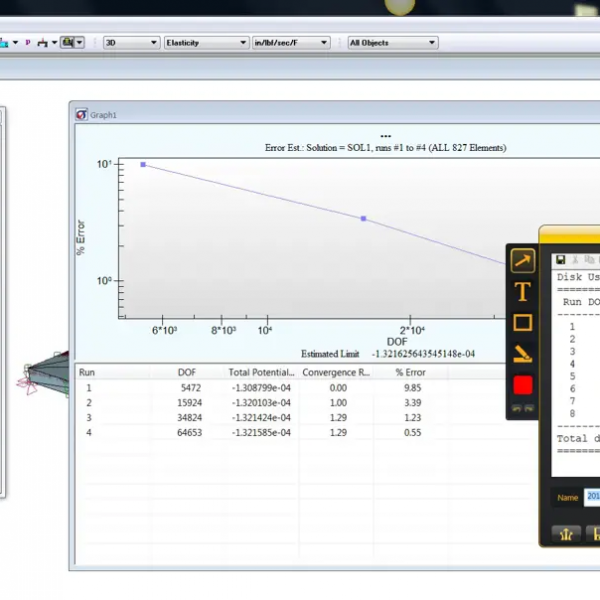

Abstract: The model’s unconstrained degrees of freedom (DOF) for each p-level may be computed before the solution is executed by using the Check > Disk Usage option in the SOLVE! GUI. Note: the unconstrained degrees of freedom will always be larger than the solved degrees of freedom.
