Webinar: Intro to Fracture Mechanics for DaDT Solution Automation

Oct 8, 2020

October 8, 2020 @ 1:00 pm EST

Strategies for the automation of durability and damage tolerance (DaDT) solutions, driven by Sim Apps designed for the computation of FEA-based total beta factors, will be explored.

This webinar is now available to watch on-demand.

WATCH NOW

WEBINAR SUMMARY

In this pre-recorded 2 hour webinar we will discuss the creation of Sim Apps for the automatic generation of complex, solution-verified 2D and 3D beta factors via the integration of StressCheck's parametric FEA engine, the Windows Component Object Model (COM) and Microsoft Excel VBA.

WEBINAR HIGHLIGHTS

In Part 1 of this webinar series, the following topics are presented:

3D StressCheck Fracture Mechanics demo
Overview of linear elastic fracture mechanics (LEFM) parameters for fatigue crack growth: SIF’s, J-integrals and beta factors.
Computation of LEFM parameters in StressCheck.
Beta factor compounding pros and cons.
FEA-based total beta factors.
Why use StressCheck for LEFM?

In Part 2 of this webinar series, the following topics are presented:

What is a Sim App? And how can they help DaDT analysts?
StressCheck’s COM API
Sim App Case Studies for DaDT
Live Sim App Demo

Webinar: How Do You Verify the Accuracy of Engineering Simulations?

Jan 16, 2019

January 16, 2019 @ 1:00 pm EST

Strategies for verifying the accuracy of engineering data will be explored, including best practices and common pitfalls engineers may encounter when assessing the quality of the results.

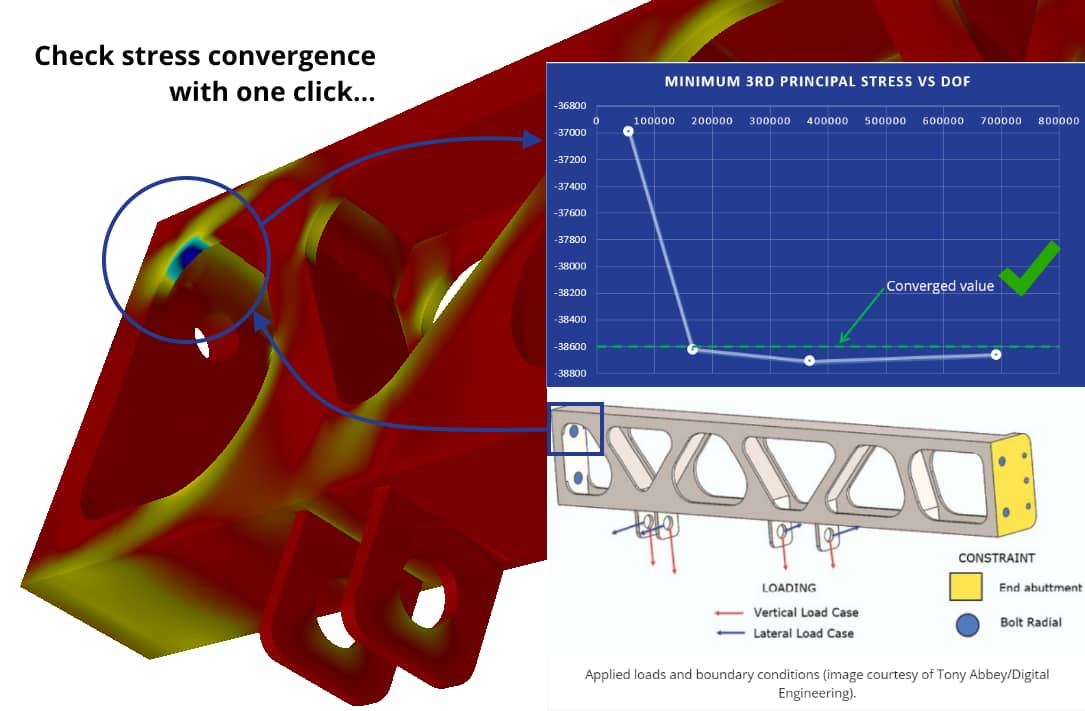

January2019Webinar — Convergence of minimum principal stress in an aircraft keel beam structure (courtesy Digital Engineering).

In this webinar we will discuss how ESRD’s S.A.F.E.R. Simulation techniques can be used to objectively verify the accuracy of engineering simulations computed by FEA.

WEBINAR HIGHLIGHTS

Why is the practice of solution verification for FEA results important? And what checks must always be performed before reporting your FEA results as “accurate”?
We will examine a variety of publicly-available and industry-applicable case studies, benchmarks and industry examples to determine the most efficient and reliable methodologies to perform solution verification.
LIVE DEMO: You will see a demonstration of ESRD’s StressCheck and its S.A.F.E.R. live dynamic results extractions for an industry example, and learn how StressCheck makes verifying the accuracy of results quick and pain-free.

Webinar: High-Fidelity Stress Analysis for S.A.F.E.R. Structural Simulation

Dec 14, 2017

December 14, 2017 @ 1:00 pm EST

Strategies in engineering simulation for reducing the frequency, cost, complexity, and uncertainty of aircraft maintenance inspection intervals.

In this webinar we will share advancements in numerical simulation that make the performance of finite element analysis S.A.F.E.R. – Simple, Accurate, Fast, Efficient, and Reliable.

WEBINAR HIGHLIGHTS

We will introduce a different approach to numerical simulation that has been developed and commercialized by ESRD which takes much of the art and craft out of finite element modeling.
An example engineering design problem from the aviation industry, requiring accurate results around stress concentrations to meet durability requirements for a long crack initiation life, will be presented.
LIVE DEMO: You will see a demonstration of ESRD’s StressCheck and its live dynamic results mining of any value of interest, anywhere throughout the model regardless of the mesh topology, as rapid design changes are conducted, evaluated and parametrically iterated.

Webinar: Hierarchic Approaches to Modeling Fastened Connections

Jun 20, 2018

June 20th, 2018 @ 1:00 pm EST

Strategies in engineering simulation for reducing the frequency, cost, complexity, and uncertainty of aircraft maintenance inspection intervals.

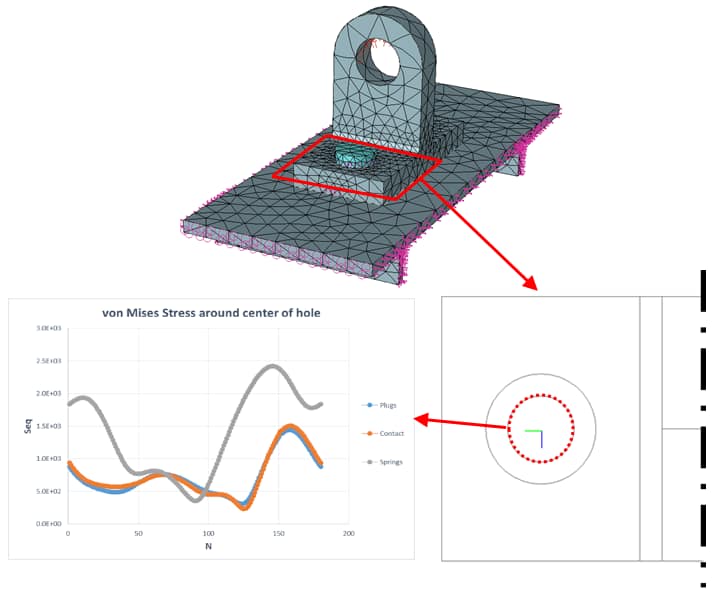

3DLugComparison — Comparison of von Mises stress distributions for fastened connection model hierarchies.

This webinar will focus on best practices for accurately modeling & analyzing fastened connections and joints, including appropriate simplifying assumptions based on the data of interest.

WEBINAR HIGHLIGHTS

Hierarchic modeling of fastened connections, including Planar-only (fastener + link + 2D elements), multi-body contact (load transfer between all parts), plug/partial contact (load transfer between notable parts), & normal springs (compression-only single part analysis) approaches.
Pros, cons and applicability of each hierarchic approach will be analyzed.
CASE STUDY: 3D Lug Comparison – Multi-body contact, plug/partial contact & normal springs.
LIVE DEMO: You will learn the process of checking reactions in contact regions/holes, as well as how to perform live-dynamic processing of detailed stresses in multi-part assemblies.

Webinar: Durability and Damage Tolerance (DaDT) Analysis Best Practices

Jun 20, 2017

June 20, 2017 @ 1:00 pm EST

Strategies in engineering simulation for reducing the frequency, cost, complexity, and uncertainty of aircraft maintenance inspection intervals.

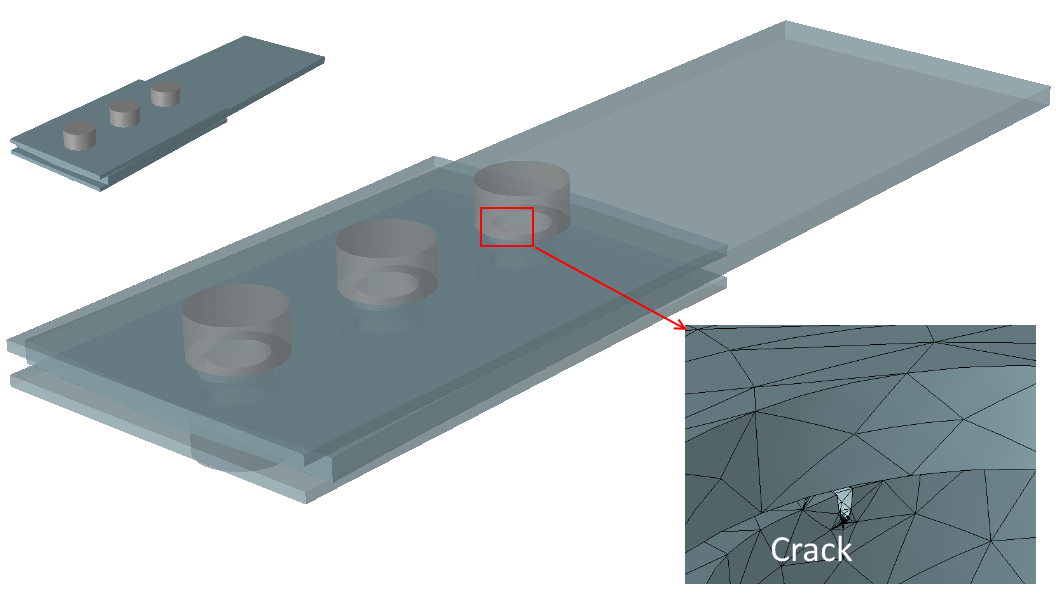

DTA Webinar 3D Fastened Joint with Corner Crack

Advancements and best practices in airframe DaDT analysis, providing for higher resolution data and more reliable computational analyses, will be expertly demonstrated via applicable examples.

WEBINAR HIGHLIGHTS

Simplify and sharpen DaDT fracture solutions with StressCheck FEA software.
Overcome computational barriers to achieve high-quality stress intensities, betas and energy release rates for airframe structures.
LIVE DEMO: Combine fastened joints and corner crack effects in a single simulation.

Webinar: Democratization of Simulation Governance-Compliant Sim Apps

Jul 29, 2019

July 29, 2019 @ 1:00 pm EST

Strategies will be explored for democratizing engineering simulations via Sim Apps which are: 1) based on the latest Numerical Simulation technologies, 2) available in Commercial Off the Shelf (COTS) form, and most importantly 3) Simulation Governance-compliant.

This webinar is now available to watch on-demand.

WATCH NOW

RevSimJulyWebinar — This joint ESRD/Rev-Sim webinar will explore Sim-Gov compliant Sim Apps for democratization of simulation.

WEBINAR SUMMARY

When utilized by engineers without specialized training, simulation technologies (and Sim Apps) based on legacy FEA technologies struggle to deliver trustworthy solutions due to their inability to objectively measure & report solution quality, an essential requirement of Simulation Governance (Sim Gov). This uncertainty inhibits true democratization of engineering simulations. So what is needed?

In this timely webinar, we will discuss why it is essential that Sim Apps implement Numerical Simulation technologies which enable the practice of Sim Gov in order for the vision of democratization of simulations to be realized, as well as why it is important for engineering managers to get on the Sim Gov train sooner rather than later.

WEBINAR HIGHLIGHTS

This four-part webinar will be jointly presented by ESRD and Revolution in Simulation (Rev-Sim), and will explore the following questions and concepts:
- Part 1: What is a Simulation Application – Sim App?
- Part 2: Why is Simulation Governance compliance critical for the development and deployment of FEA-based Sim Apps?
- Part 3: What FEA technology is required to support the democratization of Simulation Governance-compliant, Commercial-Off-The-Shelf (COTS) Sim Apps?
- Part 4: Demonstration of a Simulation Governance-compliant, FEA-based COTS tool supporting the A&D Industry for the democratization of engineering simulations (ESRD’s CAE-HB)
LIVE DEMO: You will see a live demonstration of ESRD’s CAE Handbook, a COTS, Sim Gov-compliant Sim App based on ESRD’s StressCheck Professional numerical simulation technology.

Webinar: 3D Crack Growth Simulation: Advancements & Applications

Jul 17, 2019

July 17, 2019 @ 1:00 pm EST

Strategies for seamlessly integrating the advanced fracture & DaDT capabilities of two numerical simulation software products into a state-of-the-art 3D fatigue crack growth application will be explored.

This webinar is now available to watch on-demand.

WATCH NOW

3DCrackGrowthSimulation — BAMF Example Crack Front Estimate via StressCheck/AFGROW Integration (courtesy Hill Engineering).

WEBINAR SUMMARY

In this webinar we will detail the latest technological advancements for accurate simulation of three-dimensional metallic crack growth via coupled finite element analysis (FEA) and fatigue life computations. Additionally, we will examine why the development of more complex crack growth models requires both tighter control over numerical errors (i.e. solution verification) and rigorous benchmarking to standard handbook solutions and available experimental data (i.e. model validation).

WEBINAR HIGHLIGHTS

This webinar will be jointly presented by ESRD, Hill Engineering, LLC (developers of BAMF) and LexTech, Inc. (developers of AFGROW), and will explore the latest technologies, methodologies and software implementations available for DaDT and fatigue engineers to numerically simulate fatigue crack propagation.
The effects of engineered residual stresses (ERS) on crack shape evolution and the associated cyclic fatigue life will be assessed in several practical case studies.
LIVE DEMO: You will see a 3D crack growth demonstration with Hill Engineering’s Broad Application for Modeling Failure (BAMF) software tool, which provides a robust integration between StressCheck’s DaDT/fracture solutions and AFGROW’s crack growth life prediction capabilities.

WEBINAR PARTICIPANTS

ESRD/StressCheck

StressCheck is a comprehensive Windows 10-compatible, 64-bit finite element analysis software (FEA) tool with a fully integrated pre- and post-processor and a suite of solver and analysis modules that support advanced engineering computations in applications of solid mechanics. Productivity tools are available to import NASTRAN bulk data file meshes and CAD geometry, perform 2D and 3D automatic meshing, automate analyses via StressCheck‘s API, and more. StressCheck is ideally suited for damage tolerance and forensic engineers who need the best representation of 2D or 3D SIF’s, ERR’s and beta factors for input in sophisticated crack growth simulations, or when analyzing repairs for mitigation of cracks.

Learn More

LexTech/AFGROW

AFGROW is a Damage Tolerance Analysis (DTA) framework that allows users to analyze crack initiation, fatigue crack growth, and fracture to predict the life of metallic structures. AFGROW (Air Force Grow), was originally developed by The Air Force Research Laboratory. It is now being developed and maintained by LexTech, Inc. AFGROW is one of the most efficient and widely used crack growth life prediction tools available today. AFGROW is mainly used for aerospace applications; however, it can be applied to any type of metallic structure that experiences fatigue cracking. AFGROW is also a very flexible and user-friendly computer program.

Learn More

Hill Engineering/BAMF

BAMF is used for fatigue analysis, and it is capable of predicting the growth of fatigue cracks in 3D parts. Starting from an assumed initial flaw, BAMF combines stress and crack growth analyses to predict the evolution of crack shape and size in 3D. BAMF provides a robust and automated link between two leading tools: AFGROW and StressCheck. Key features of BAMF include: natural crack shape evolution, fully 3D fatigue analysis capability, complex loading support, multiple cracks, and residual stress compatibility.

Learn More

Testimonials

“In the case of the through crack configuration, the comparison of experimental and StressCheck derived geometry factors showed a close correlation and were an improvement to solutions provided in AFGROW at the time. Based on the results of this research, StressCheck pin-loaded lug geometry factors have since been incorporated into the AFGROW software.”

Dr. Alten Grandt
Purdue University

Webinars

Webinar: Intro to Fracture Mechanics for DaDT Solution Automation

WEBINAR SUMMARY

WEBINAR HIGHLIGHTS

Webinar: How Do You Verify the Accuracy of Engineering Simulations?

In this webinar we will discuss how ESRD’s S.A.F.E.R. Simulation techniques can be used to objectively verify the accuracy of engineering simulations computed by FEA.

WEBINAR HIGHLIGHTS

Webinar: High-Fidelity Stress Analysis for S.A.F.E.R. Structural Simulation

In this webinar we will share advancements in numerical simulation that make the performance of finite element analysis S.A.F.E.R. – Simple, Accurate, Fast, Efficient, and Reliable.

WEBINAR HIGHLIGHTS

Webinar: Hierarchic Approaches to Modeling Fastened Connections

This webinar will focus on best practices for accurately modeling & analyzing fastened connections and joints, including appropriate simplifying assumptions based on the data of interest.

WEBINAR HIGHLIGHTS

Webinar: Durability and Damage Tolerance (DaDT) Analysis Best Practices

Advancements and best practices in airframe DaDT analysis, providing for higher resolution data and more reliable computational analyses, will be expertly demonstrated via applicable examples.

WEBINAR HIGHLIGHTS

Webinar: Democratization of Simulation Governance-Compliant Sim Apps

WEBINAR SUMMARY

WEBINAR HIGHLIGHTS

Webinar: 3D Crack Growth Simulation: Advancements & Applications

WEBINAR SUMMARY

WEBINAR HIGHLIGHTS

WEBINAR PARTICIPANTS

ESRD/StressCheck

LexTech/AFGROW

Hill Engineering/BAMF
